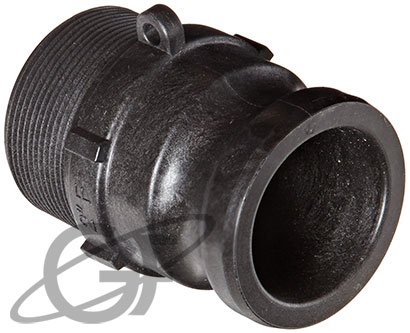

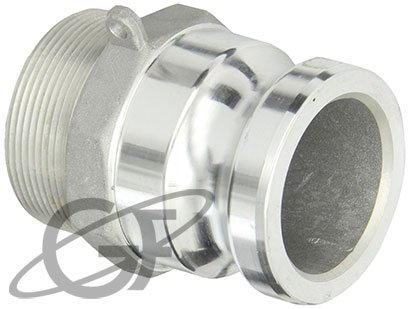

Modelo GF-F / NM
(Macho con rosca Macho)
| DIAMETRO | 1/2"(13mm) | 3/4" (19mm) | 1" (25mm) | 1 1/4" (32mm) | 1 1/2" (38mm) | 2" (50mm) | 2 1/2" (65mm) | 3" (75mm) | 4" (100mm) | 5" (125mm) | 6" (150mm) |
| A | 13 | 21 | 25 | 28 | 36 | 45 | 55 | 72 | 96 | 124 | 151 |
| B | 56 | 59 | 68 | 78 | 81 | 87 | 101 | 103 | 118 | 127 | 121 |
| C | 26 | 35 | 38 | 47 | 56 | 68 | 79 | 101 | 126 | 150 | 181 |
| E | 37 | 41 | 45 | 54 | 58 | 62 | 69 | 71 | 79 | 82 | 78 |
