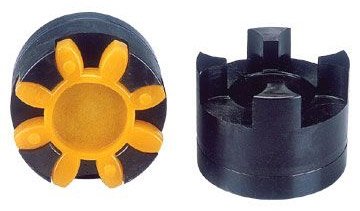

ACOPLE ELASTICO ROTEX o FL

acople rotex repuesto estrella rotex


MODELO n Max rpm nNom rpm HP/RPM Mt Nm Peso Kg d1 Max D B F H K L Tipo
FL 19/24 14000 0.0015 10 0.33 24 40 25 - 2 0 66 1a/1a
FL 24/28 10600 0.0036 25 0.66 28 55 30 - 2 0 78 1a/1a
FL 28/38 8500 0.0065 46 1.2 28 65 35 - 2.5 0 90 1a/1a
FL 38/45 7100 0.013 93 2.3 45 80 45 66 3 37 114 1/1a
FL 42/55 6000 0.020 140 3.6 55 95 50 75 3 40 126 1/1a
FL 48/60 5600 0.027 190 4.8 60 105 56 85 3.5 45 140 1/1a
FL 55/70 4750 0.034 240 7.4 70 120 65 98 4 52 160 1/1a
FL 65/75 4250 0.045 320 11 75 135 75 115 4.5 61 185 1/1a
FL 75/90 3550 0.077 540 18 90 160 85 135 5 69 210 1/1a
FL 90/100 2800 0.170 1200 30 100 200 100 160 5.5 81 245 1/1a
FL 38 7100 0.013 93 2 38 80 45 66 3 37 114 1/1
FL 42 6000 0.020 140 3.2 42 95 50 75 3 40 126 1/1
FL 48 5600 0.027 190 4.4 48 105 56 85 3.5 45 140 1/1
FL 55 4750 0.034 240 6.7 55 120 65 98 4 52 160 1/1
FL 65 4250 0.045 320 10 65 135 75 115 4.5 61 185 1/1
FL 75 3550 0.077 540 16 75 160 85 135 5 69 210 1/1
FL 90 2800 0.170 1200 27.5 90 200 100 160 5.5 81 245 1/1

Modelo 1a/1a
Modelo 1/1a


Modelo 1/1
